Reinforced concrete work across the UAE depends on properly shaped steel bars. From villa foundations in Sharjah to high rise towers in Dubai and Abu Dhabi, every reinforcement crew needs bars bent to the exact angle shown on the structural drawing.
Equipment for this task ranges from a simple hand operated tool to a fully powered electric machine. The choice between them affects daily output, labour cost and bend accuracy.
This guide explains how each option works and what a contractor should check before placing an order.
What Is a Bar Bending Machine
A bar bending machine shapes steel reinforcement bars into the angle a structural drawing calls for. The bar rests against a fixed point inside the machine.
A rotating pin or roller pushes the bar around that point until it reaches the required angle, such as 90 degrees or 135 degrees. The same task can be done by hand using a lever and a steel pin set into a bending table, though the result depends on the strength and technique of the operator.
Both manual and powered machines aim for the same outcome, a clean and accurate bend that matches every other bar in the batch. The real difference lies in how the bending force is generated and how consistent that output stays across hundreds of bars in a single shift.

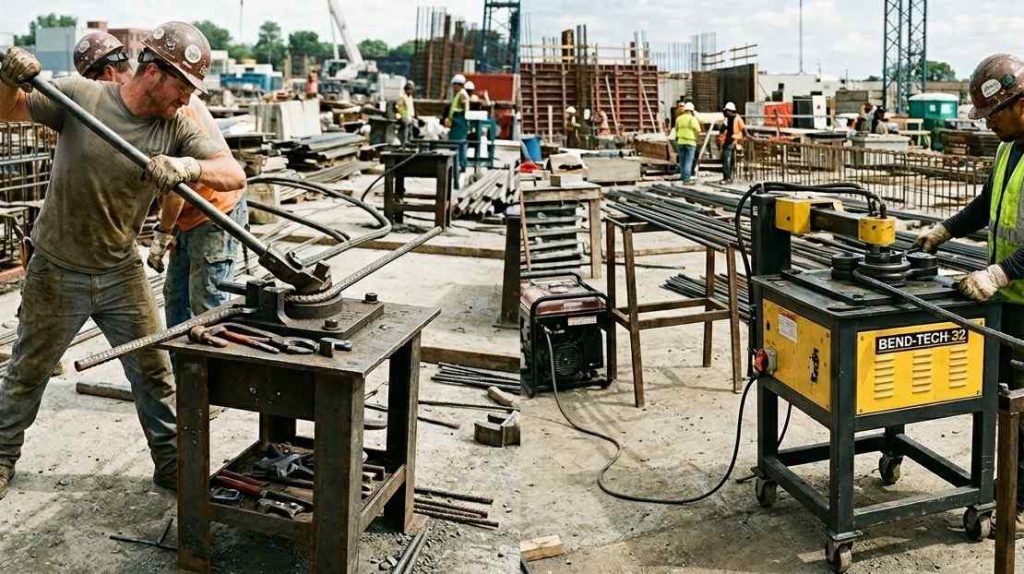

Manual vs Electric Bar Bending Machines
A manual bender relies on the operator pulling or cranking a handle to rotate the bending pin. It needs no power connection, costs less to buy and works well on small jobs or in locations where electricity is not yet available.
The tradeoff is consistency. Bend accuracy depends on how much force each worker applies, and that force varies from one bar to the next and from one worker to another.
An electric bender uses a motor to drive the bending head. The operator sets the angle once, places the bar and triggers the machine.
Every bend comes out the same, the work moves faster and the physical strain on the crew drops sharply. The higher purchase price and the need for a stable power supply are the main points to weigh before choosing this option.
| Feature | Manual Bar Bending Machine | Electric Bar Bending Machine |
| Power source | Hand operated lever | Electric motor |
| Typical bar diameter | Up to about 20mm | 6mm to 40mm depending on model |
| Bending speed | Slower, depends on operator | Fast, seconds per bend |
| Consistency | Varies by operator | Uniform on every bar |
| Upfront cost | Lower | Higher |
| Best suited for | Small jobs and remote sites | Medium to large UAE projects |
Types of Bar Bending Machines Used on UAE Sites
UAE contractors choose from several configurations depending on project size and bar diameter.
- Manual bar bending machines for small jobs and locations with limited power supply
- Electric bar bending machines for steady output on mid sized to large reinforcement yards
- Hydraulic bar bending machines for bars above 32mm where extra force is needed
- Portable bar bending machines for upper floors where craning long bars up is costly
- Combined cutting and bending machines for sites where yard space is limited
Each type covers a different point on the scale between job size and budget. A reinforcement yard preparing bars for a tower may run electric or hydraulic machines at ground level.
Pre cut bundles then go up by crane for a portable machine to finish bending on the slab.
Key Factors to Consider Before Buying
Four factors usually decide which machine fits a UAE site.
Bar diameter capacity matters most. Confirm the largest bar diameter shown in the structural drawing and match it to the machine specification.
Many electric models handle 8mm to 32mm. Heavier projects with 36mm or 40mm bars need a higher capacity unit.
Project scale changes the calculation too. A single villa needs far less throughput than a tower with hundreds of bars per shift.
The shift target determines whether a manual unit is enough or whether an electric machine pays for itself in saved labour hours.
Power supply needs checking before the machine arrives on site. Most electric and hydraulic benders used in the region run on 380 to 415 volt three phase power, so the site must have that supply ready in advance.
Site access and floor level affect the choice on tall buildings. Above the lower floors, a portable unit removes the need to crane long bent shapes up the building.
Bundles travel up straight on these sites and get bent on the slab itself.
When comparing a bar bending machine UAE suppliers stock, also check after sales support, spare parts availability and warranty terms before placing an order. These details matter just as much as the machine specification once the unit is in daily use on a busy site.
Why the Right Machine Matters for Quality and Safety
Inaccurate bends create real problems on site. A bar that springs back past the target angle needs individual adjustment, and cage spacing has to be reworked before the pour.
Heat based cutting and bending is restricted under some UAE structural specifications because heat changes the metallurgical strength of the bar end. Mechanical bending and cutting remains the standard method for this reason.
A properly matched machine keeps every bend identical and lowers rework. It also reduces injury risk from manual handling and protects the labour budget across a long project programme.
Maintenance Tips to Keep Your Machine Running
- Inspect bending dies and pins for wear before each shift begins
- Lubricate gears, bearings and moving joints on a regular schedule
- Clean away metal debris and dust after each use
- Check electrical components and motor connections on powered machines
- Recalibrate the angle stopper if bends start drifting off target
A simple routine like this extends machine life and keeps bend accuracy consistent across a project.
Conclusion
Both manual and electric bar bending machines remain useful on UAE sites. The right choice depends on bar diameter, project scale, power supply and how long the work will run.
Small jobs and remote locations still suit a manual unit well. Medium to large reinforcement programmes get more value from an electric or hydraulic machine that holds the same accuracy on every single bar.
For contractors who want dependable equipment backed by genuine after sales support, Abul Fazl Trading supplies bar bending and cutting machines suited to real UAE site conditions.
Contact our team today to get the right specification for your next project.
