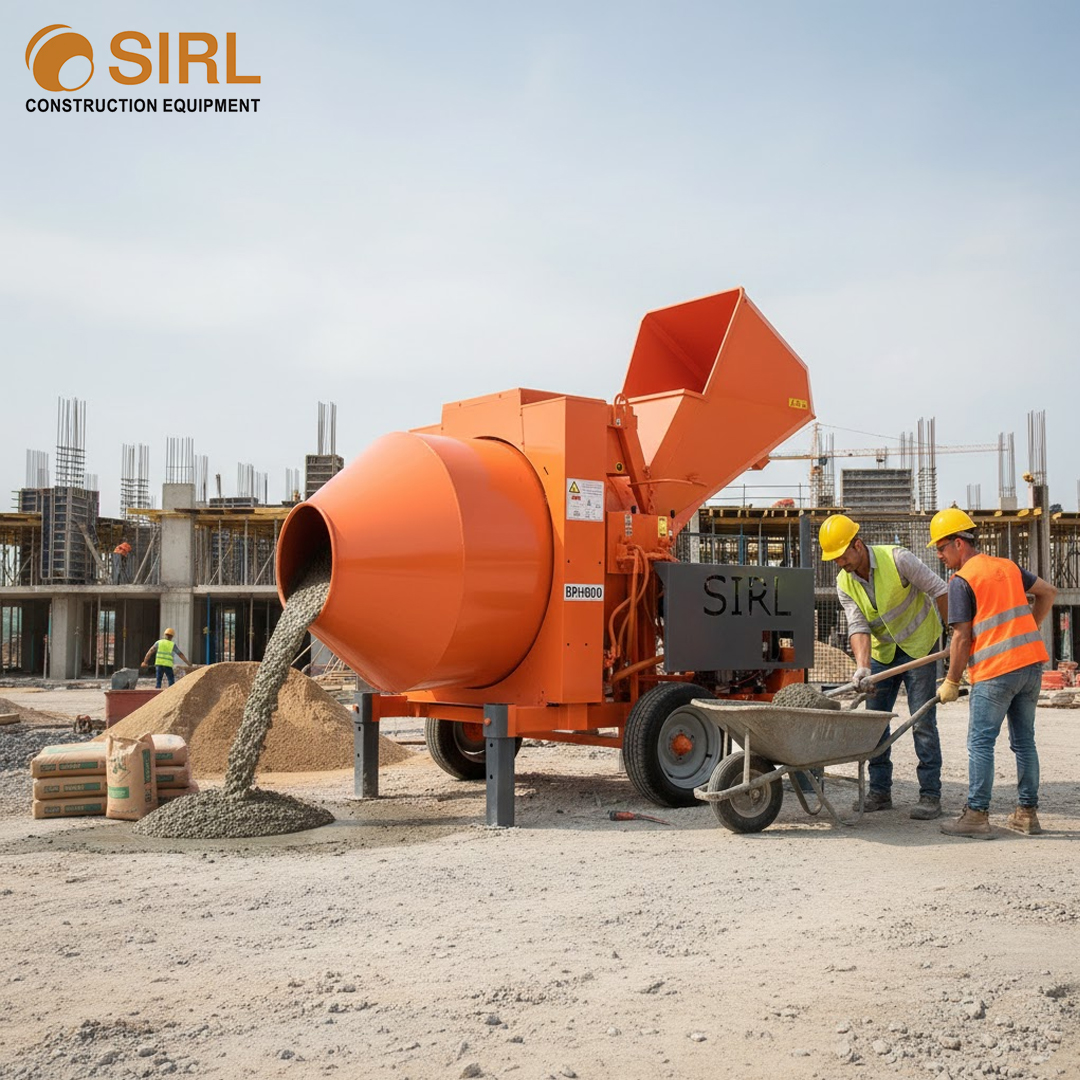

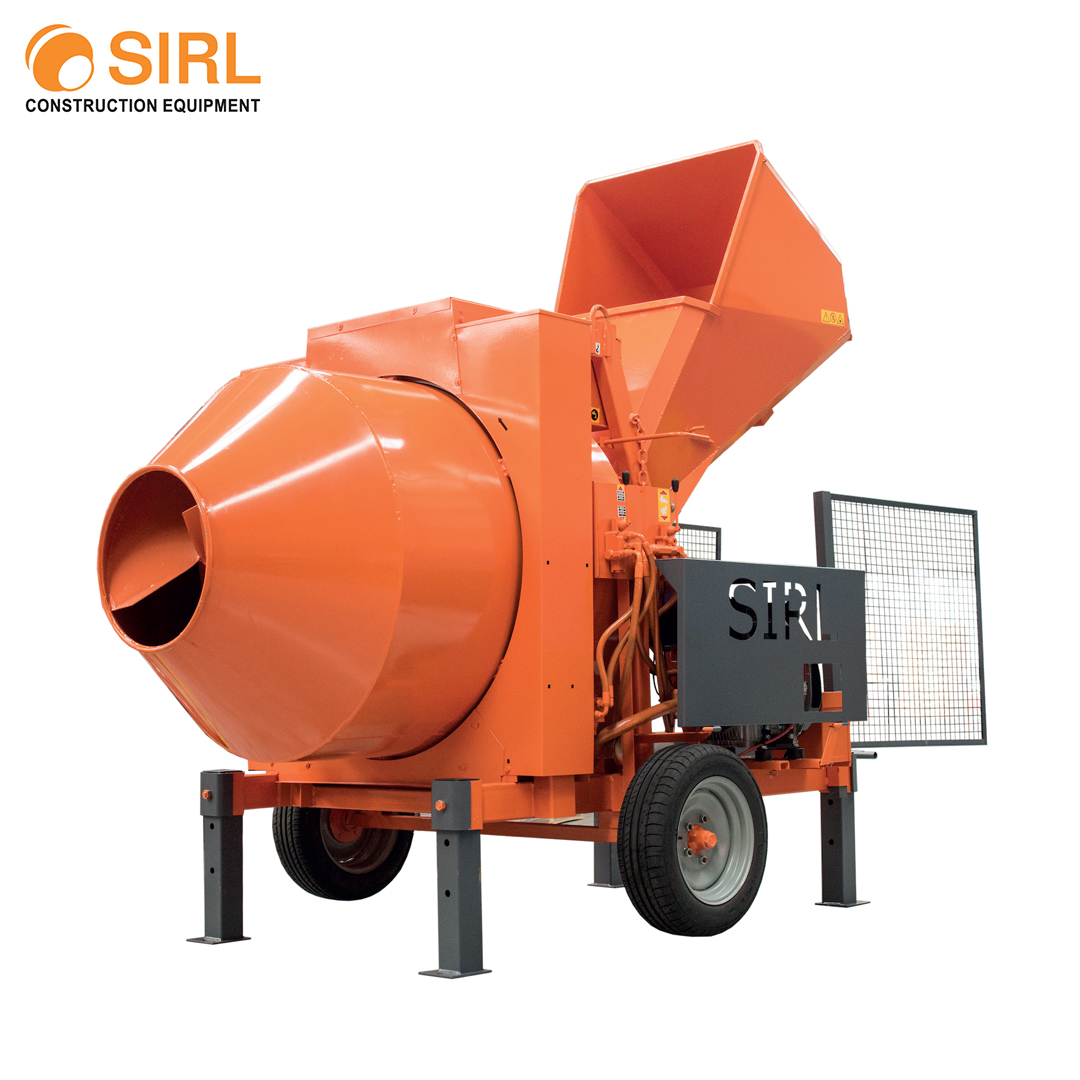

The SIRL Cement Mixer BRH800 with Hydraulic Loader is a high-performance cement mixer designed for medium to large construction projects requiring reliable and continuous mixing. Equipped with a hydraulic loading system, it ensures fast material handling and reduced manual labor. With a strong mixing output of 19 m³/h, a generous drum and mixing capacity, and a rugged steel structure, the BRH 800 delivers exceptional productivity on-site. This model is powered by the Lombardini 25LD 425 – 19 HP engine, offering dependable power, efficient fuel consumption, and smooth operation even in demanding conditions. Built for durability, stability, and performance, it is an ideal choice for construction contractors and ready-mix operations.
| Specification | Value |
|---|---|
| Load Capacity (Bags) | 5/6 bags × 35 kg |
| Approx. Machine Weight | 1300 kg |
| Hourly Production | 19 m³/h |
| Drum Total Volume | 750 L |
| Effective Mixing Capacity | 450 L |
| Hydraulic Tank Capacity | 80 L |
| Engine | Lombardini 25LD 425 – 19 HP |
| Electric Motor (Optional) | 10 CV (400V – 50/60 Hz) |
| Drum Rotation Speed | 21 rpm |
| Paddle Motor Power | 2.5 CV |
| Hydraulic Loader Speed | 0.9 m/s |
| Max. Load on Shovel | 200 kg |
| Shovel Lifting Height | 13 m |
| Hydraulic Pressure | 140 bar |
| Dimensions (L × W × H) | 3200 × 1900 × 3070 mm |
