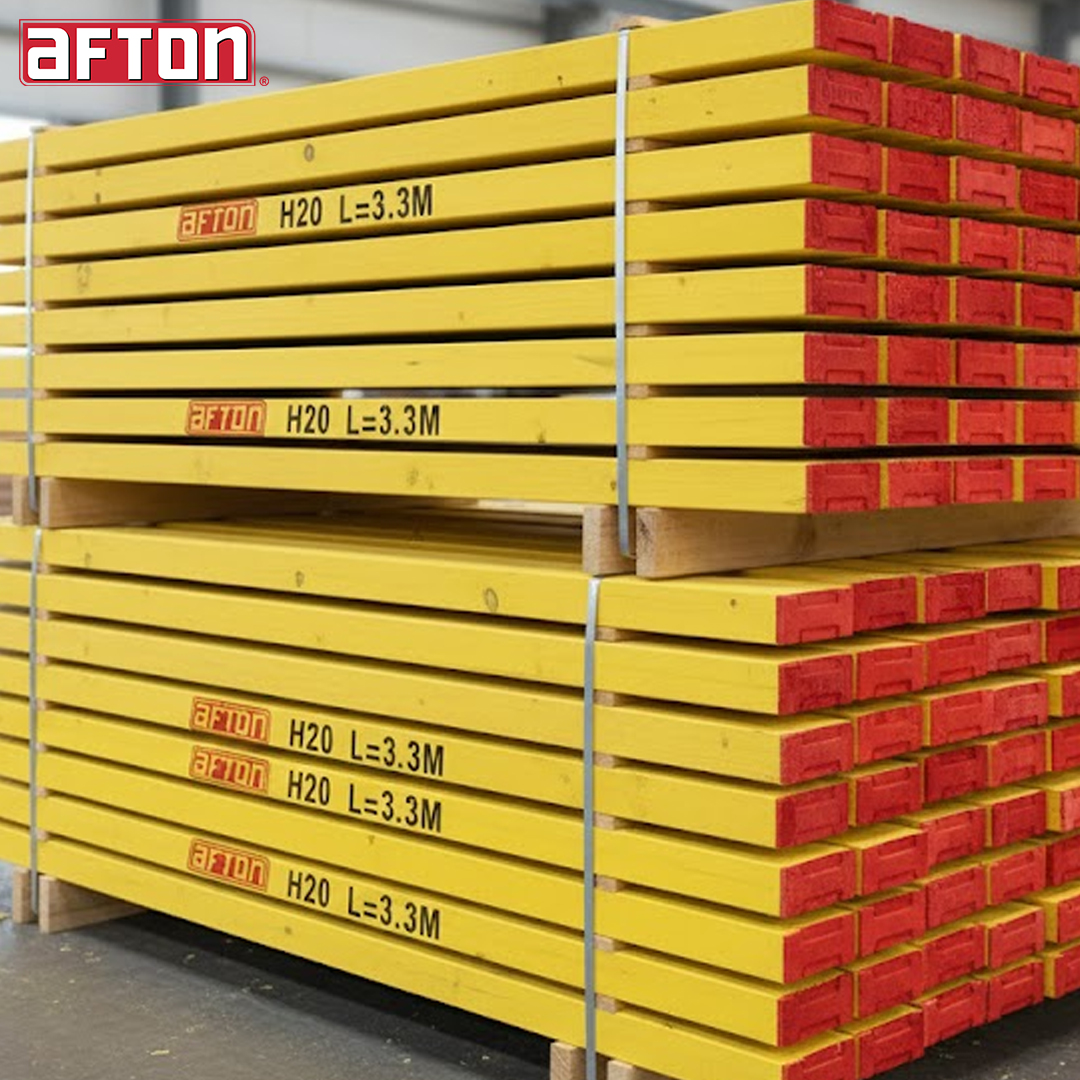

Afton H20 Timber Beam
The Afton H20 Timber Beam is a high-strength engineered timber beam designed for concrete formwork and shuttering systems. Lightweight yet durable, it offers excellent load-bearing capacity, dimensional stability, and long service life, making it ideal for slabs, walls, columns, and other structural formwork applications.

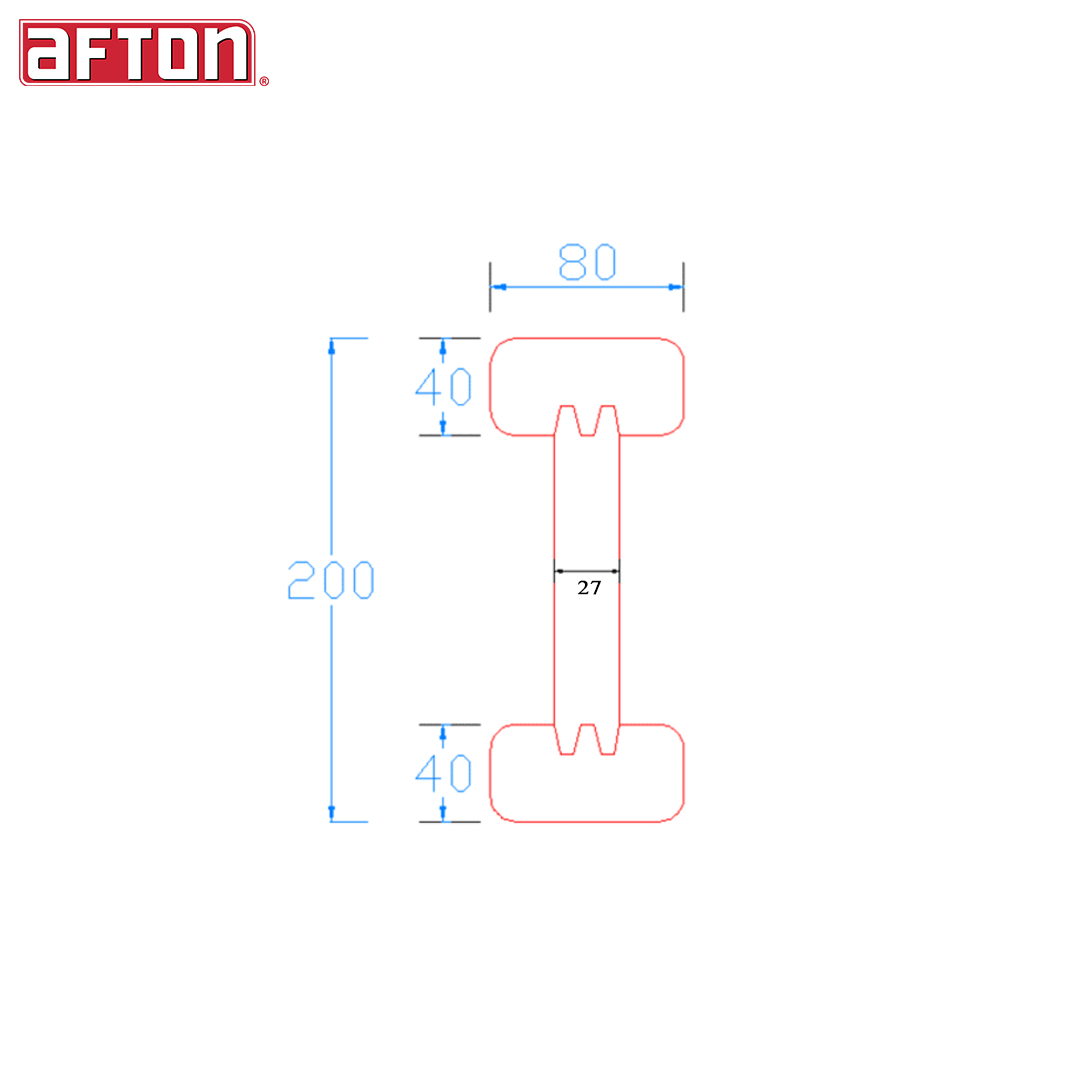

Technical Specifications
- Weight: 4.8 kg/m
- Beam Depth (H): 200 mm
- Flange Width (b): 80 mm
- Flange Depth (h): 40 mm
- Shear Resistance (V): 42.96 kN
- Bending Resistance (M): 22.34 kNm
- Bearing Resistance (Rb): 80.32 kN
- Bending Stiffness (EI): 460 kNm²
Key Points
- High-strength engineered timber construction
- Lightweight design – 4.8 kg/m
- Ideal for concrete formwork and shuttering systems
- Excellent bending and load-bearing performance

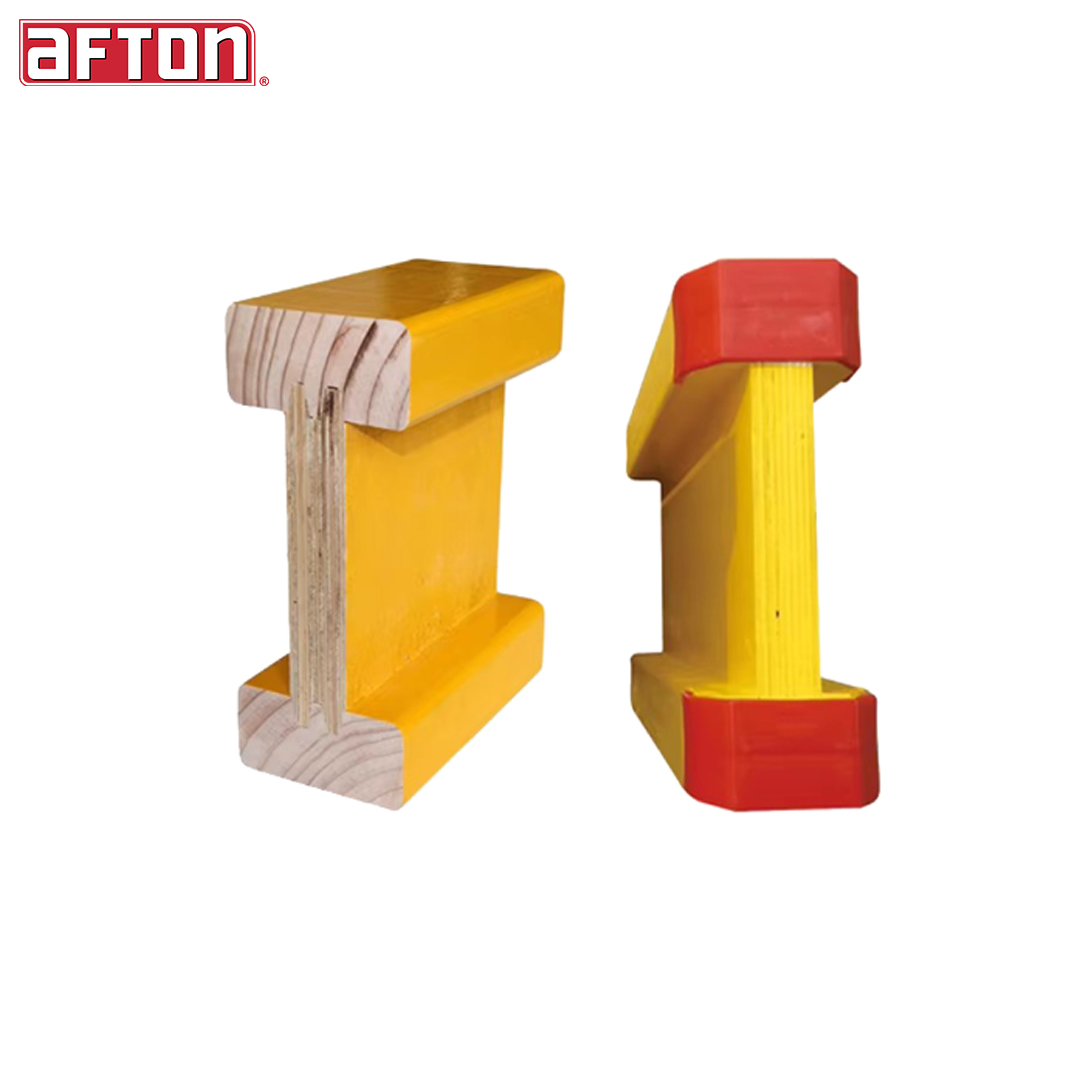

- Durable protective end caps for extended service life
- Moisture-resistant and dimensionally stable
- Compatible with standard formwork accessories
- Reusable for multiple construction cycles
