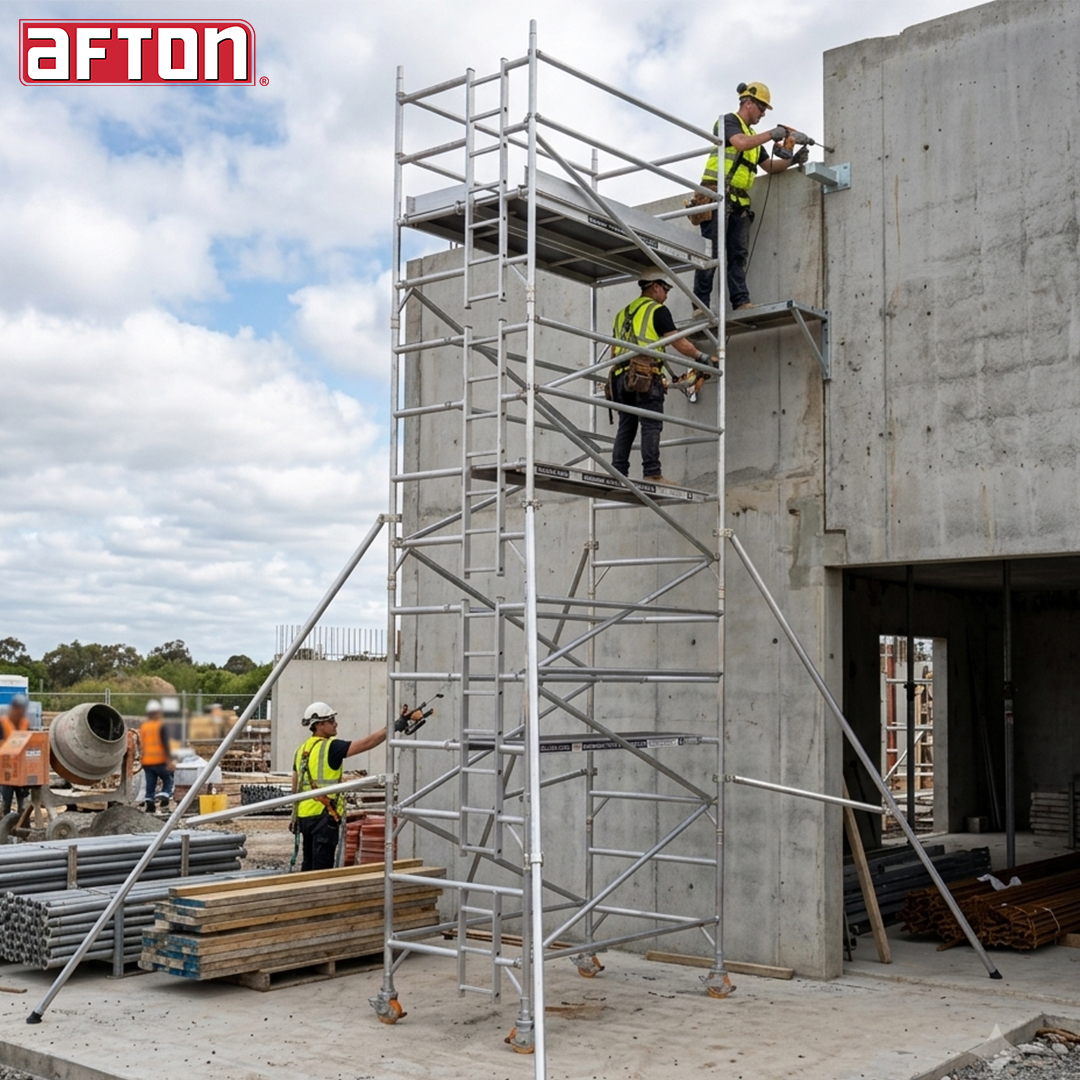

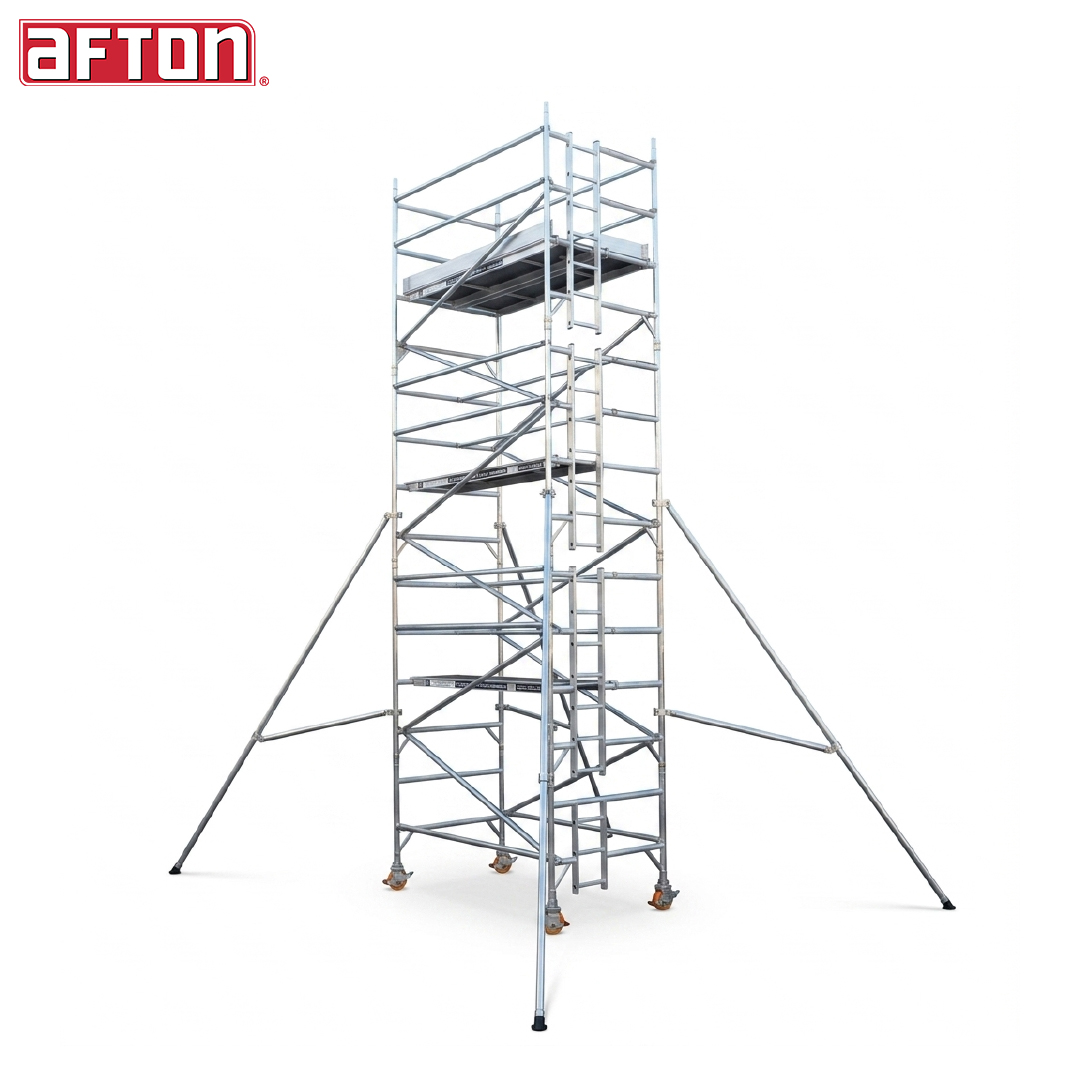

The AFTON Aluminum Scaffolding Double Width Mobile Tower is a high-reach, heavy-duty mobile platform engineered for multi-person construction, facade installations, and industrial maintenance across Dubai and the UAE. Manufactured from high-tensile structural aluminum alloy, this versatile mobile tower features an oversized 1.45 m × 2.50 m working deck, modular height adjustments from 2.00 m to 16.00 m, adjustable stabilizer outriggers, lockable caster wheels, and a 200 kg safe working load capacity.
The AFTON Aluminum Scaffolding Double Width Mobile Tower is in stock and available for immediate dispatch from Abul Fazl Trading. Contact our technical sales team via WhatsApp or submit an online RFQ for instant commercial pricing and project delivery schedules in Dubai and across the United Arab Emirates.
| Specification Parameter | Technical Details |
| Material Grade | High-Grade Structural Aluminum Alloy |
| Platform Dimensions | 1.45 m × 2.50 m (Double Width) |
| Platform Height Range | 2.00 m to 16.00 m Adjustable |
| Safe Working Load | 200 kg Heavy-Duty Capacity |
| Mobility & Safety | Lockable Caster Wheels & Adjustable Outriggers |
| Structure Type | Modular Quick-Assembly Mobile Scaffold |
| TOWER CODE | SIZE | AFTDW2 | AFTDW3 | AFTDW4 | AFTDW5 | AFTDW6 | AFTDW7 | AFTDW8 | AFTDW9 | AFTDW10 | AFTDW11 | AFTDW12 | AFTDW13 | AFTDW14 | AFTDW15 | AFTDW16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TOWER HEIGHT | 2.0 M | 3.0 M | 4.0 M | 5.0 M | 6.0 M | 7.0 M | 8.0 M | 9.0 M | 10.0 M | 11.0 M | 12.0 M | 13.0 M | 14.0 M | 15.0 M | 16.0 M | |
| PLATFORM HEIGHT | 1.0 M | 2.0 M | 3.0 M | 4.0 M | 5.0 M | 6.0 M | 7.0 M | 8.0 M | 9.0 M | 10.0 M | 11.0 M | 12.0 M | 13.0 M | 14.0 M | 15.0 M | |
| WORKING HEIGHT | 3.0 M | 4.0 M | 5.0 M | 6.0 M | 7.0 M | 8.0 M | 9.0 M | 10.0 M | 11.0 M | 12.0 M | 13.0 M | 14.0 M | 15.0 M | 16.0 M | 17.0 M | |
| LADDER FRAME | 2.0 M | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 | 8 |
| EXTENISON FRAME | 2.0 M | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 | 8 |
| GUARDRAIL FRAME | 1.0 M | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||||
| HORIZONTAL BRACE | 2.5 M | 2 | 4 | 4 | 6 | 6 | 7 | 8 | 9 | 10 | 12 | 12 | 14 | 14 | 16 | 18 |
| DIAGONAL BRACE | 2.7 M | 2 | 2 | 4 | 5 | 8 | 10 | 10 | 12 | 12 | 16 | 16 | 18 | 18 | 20 | 20 |
| STABILIZER | 3.0 M | 4 | 4 | |||||||||||||
| STABILIZER | 4.0 M | 4 | 4 | |||||||||||||
| STABILIZER | 6.0 M | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||
| CASTER WHEEL | 8" | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| PLATFORM TRAPDOOR | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 |
